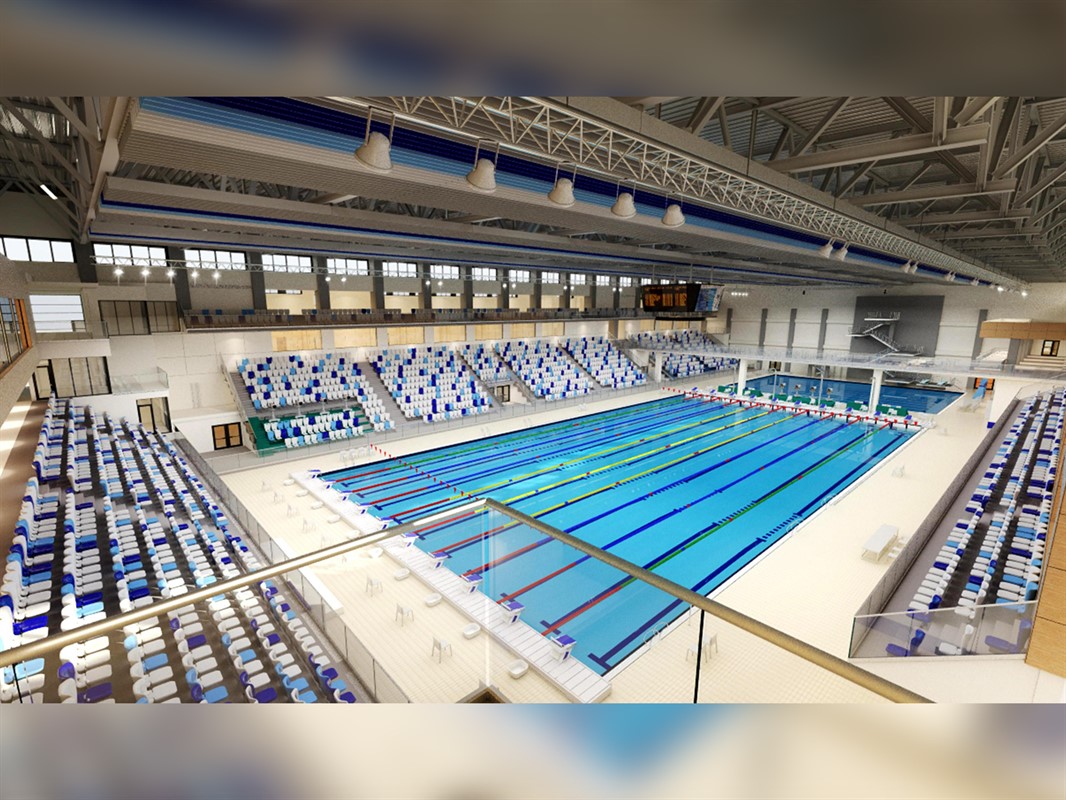

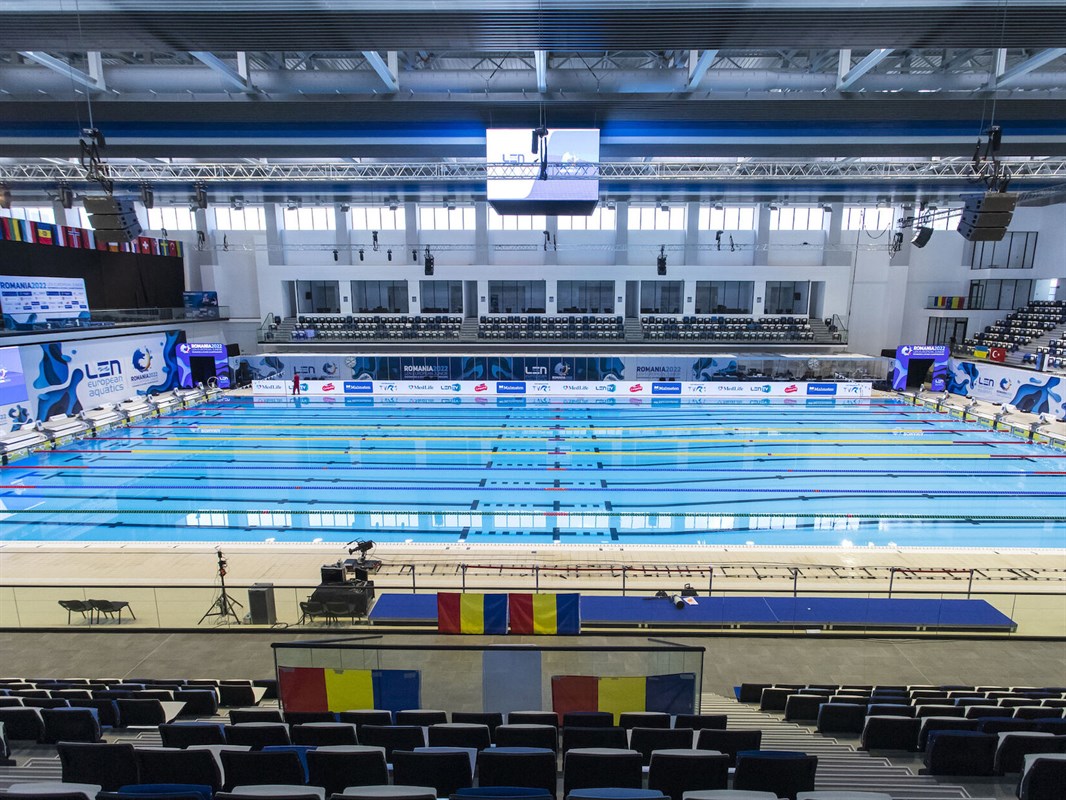

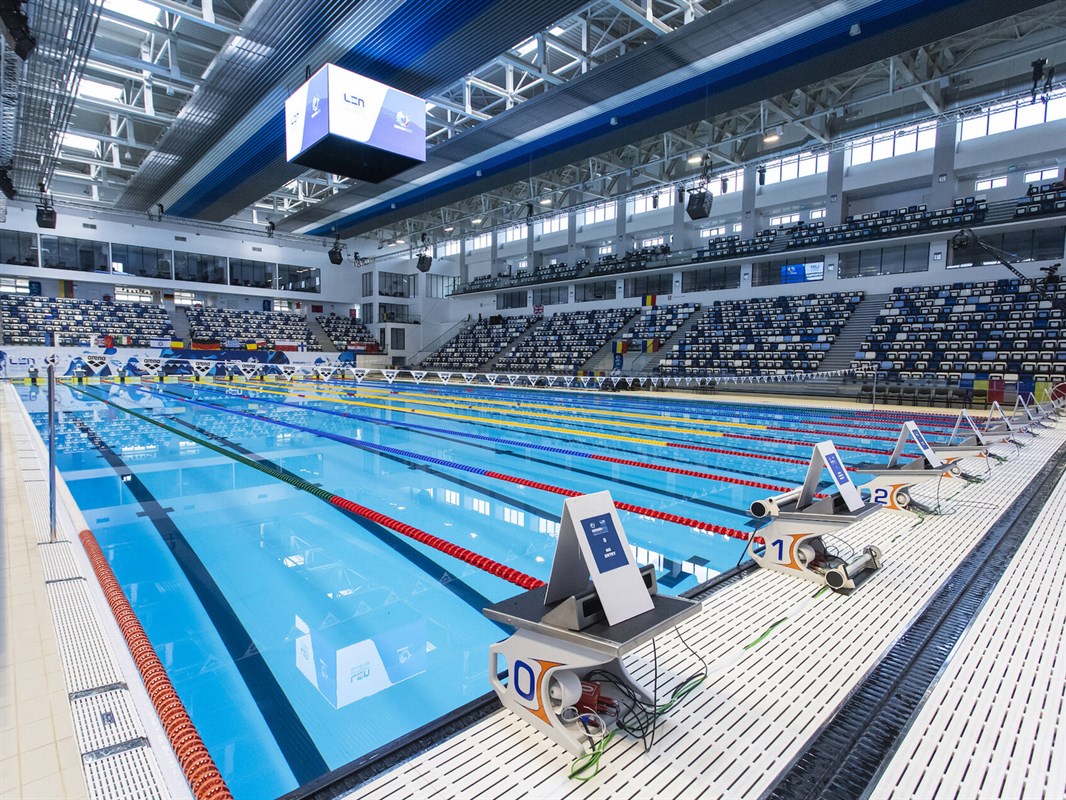

Olympic Swimming Pool
june 2020
Bucharest, Romania

product installed:

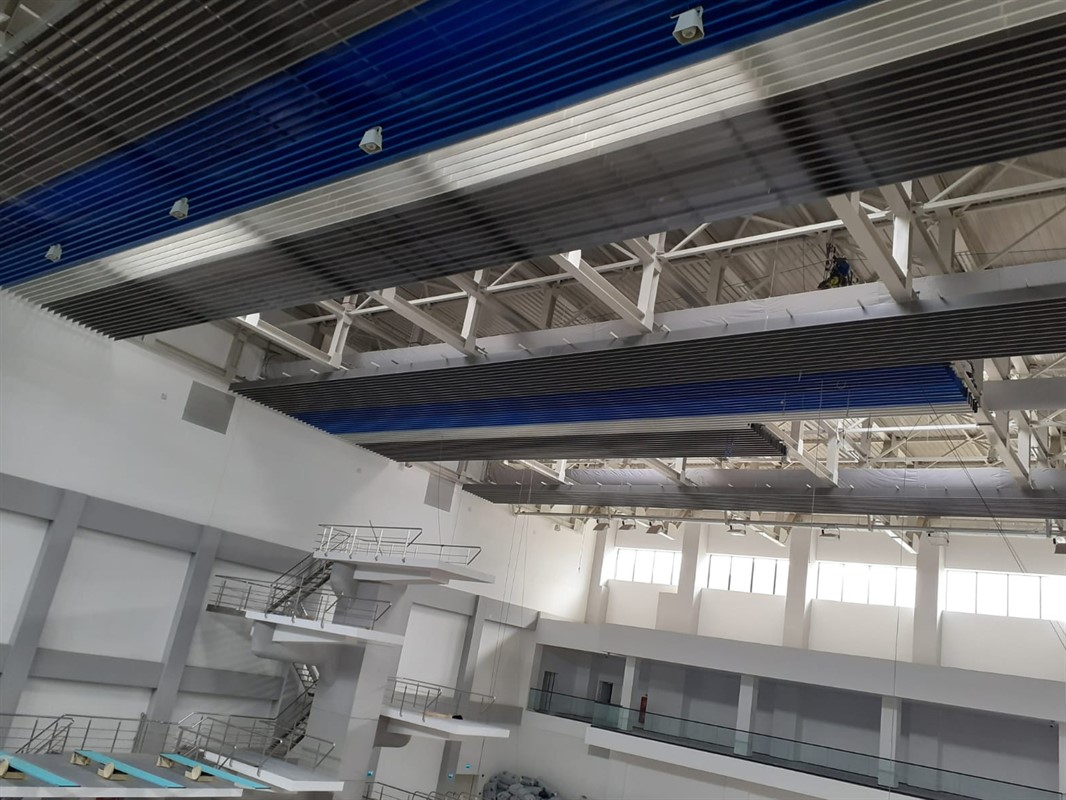

metal ceilings

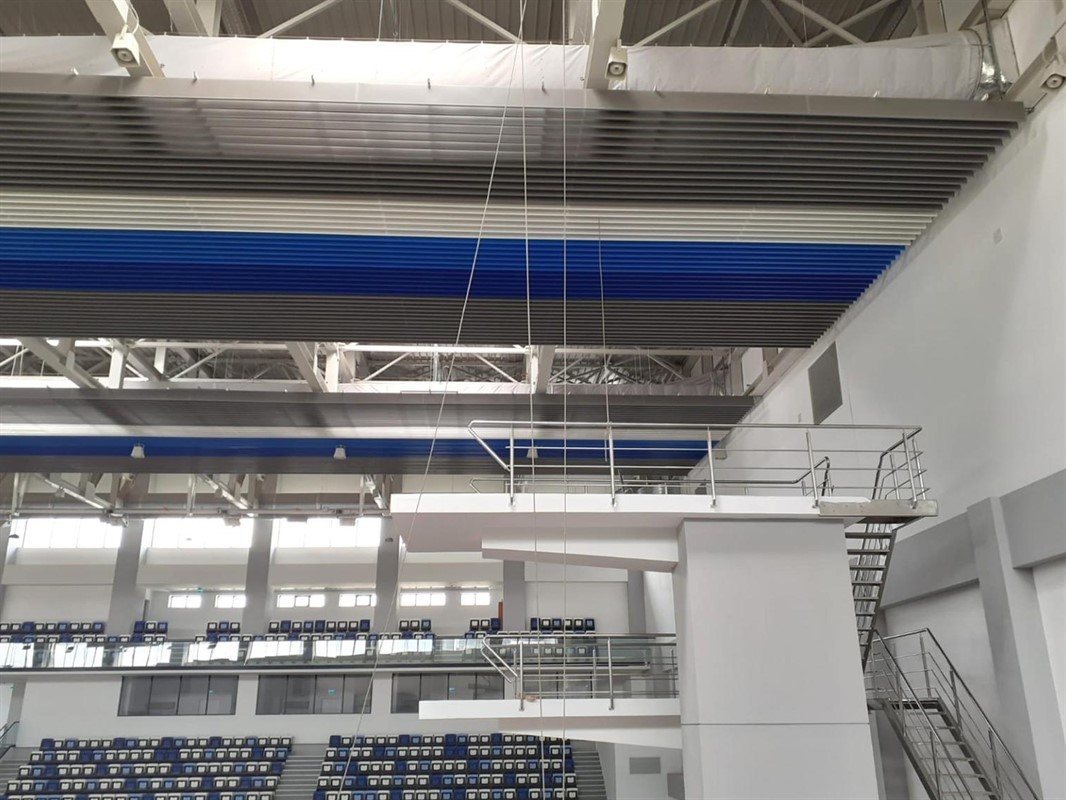

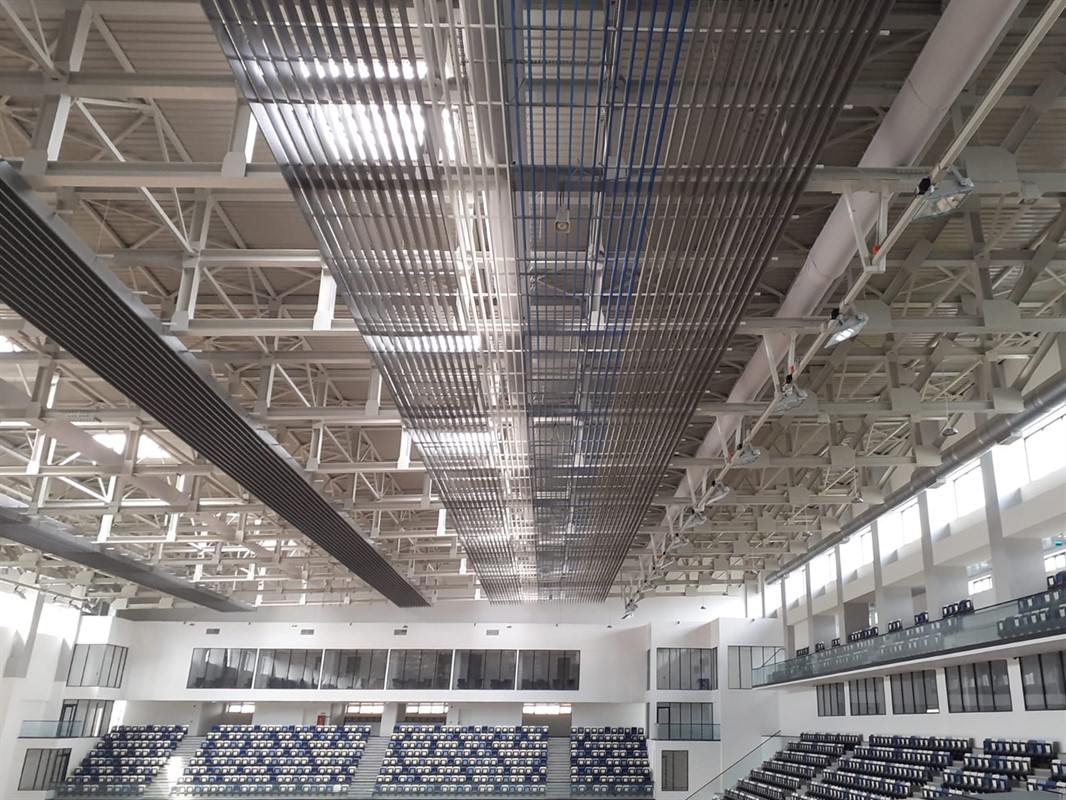

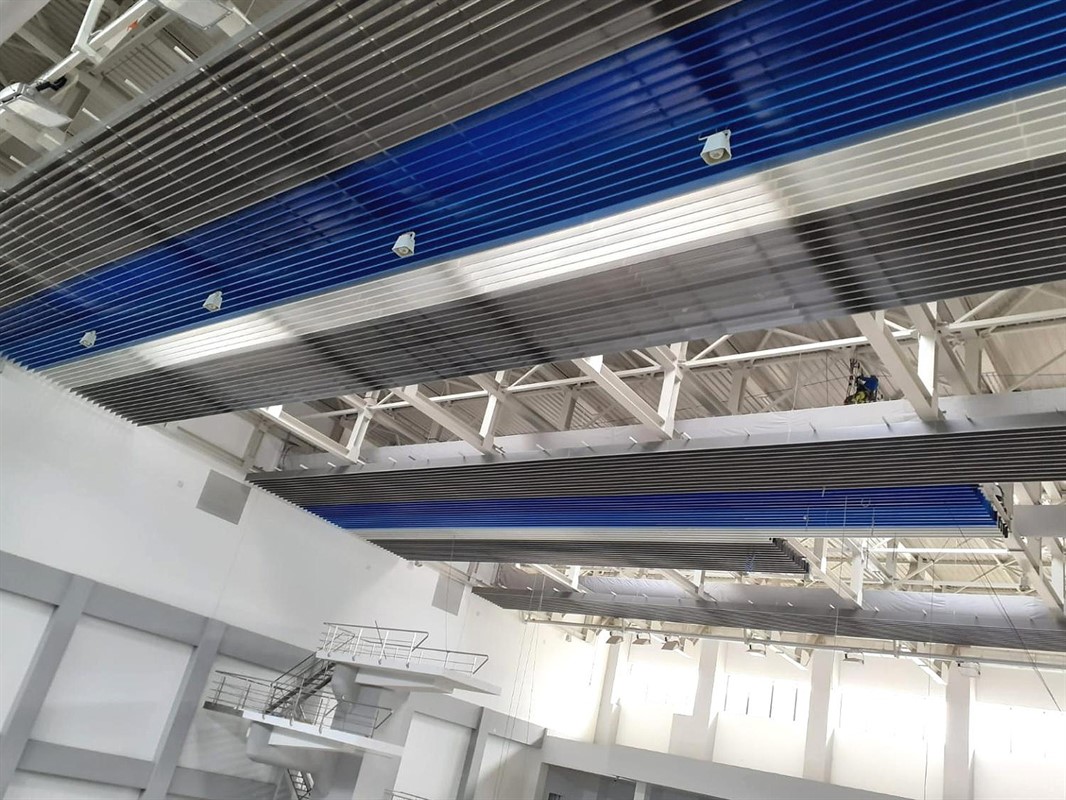

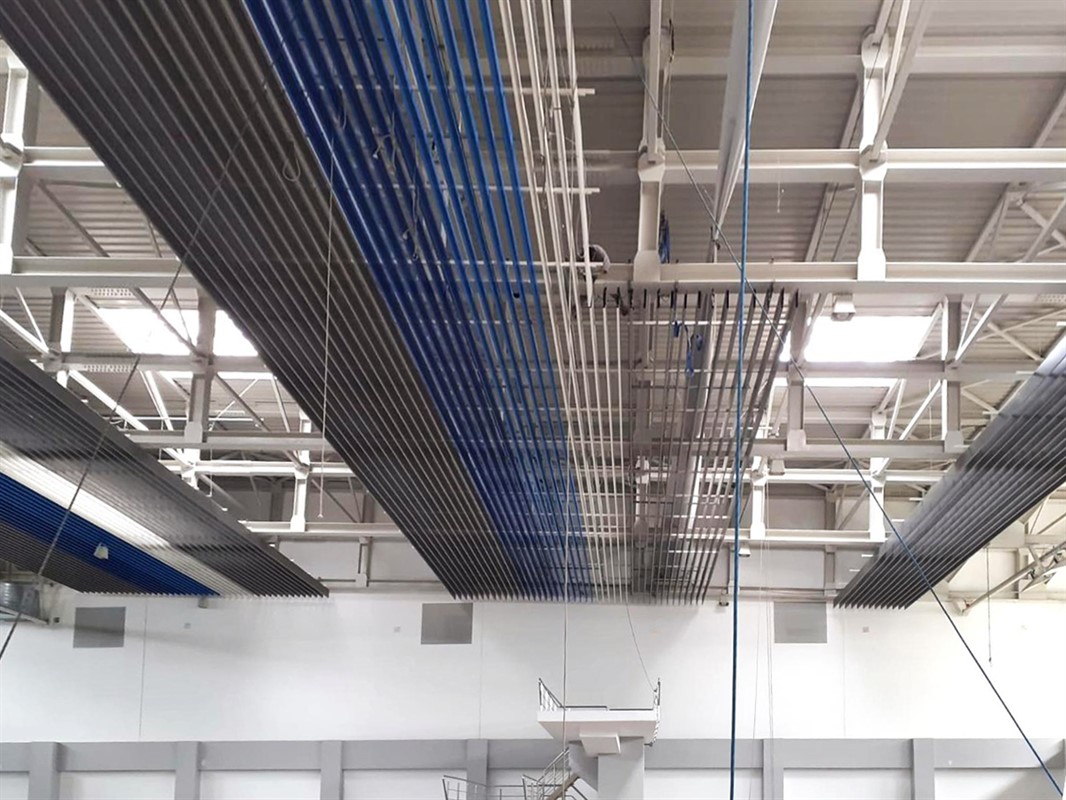

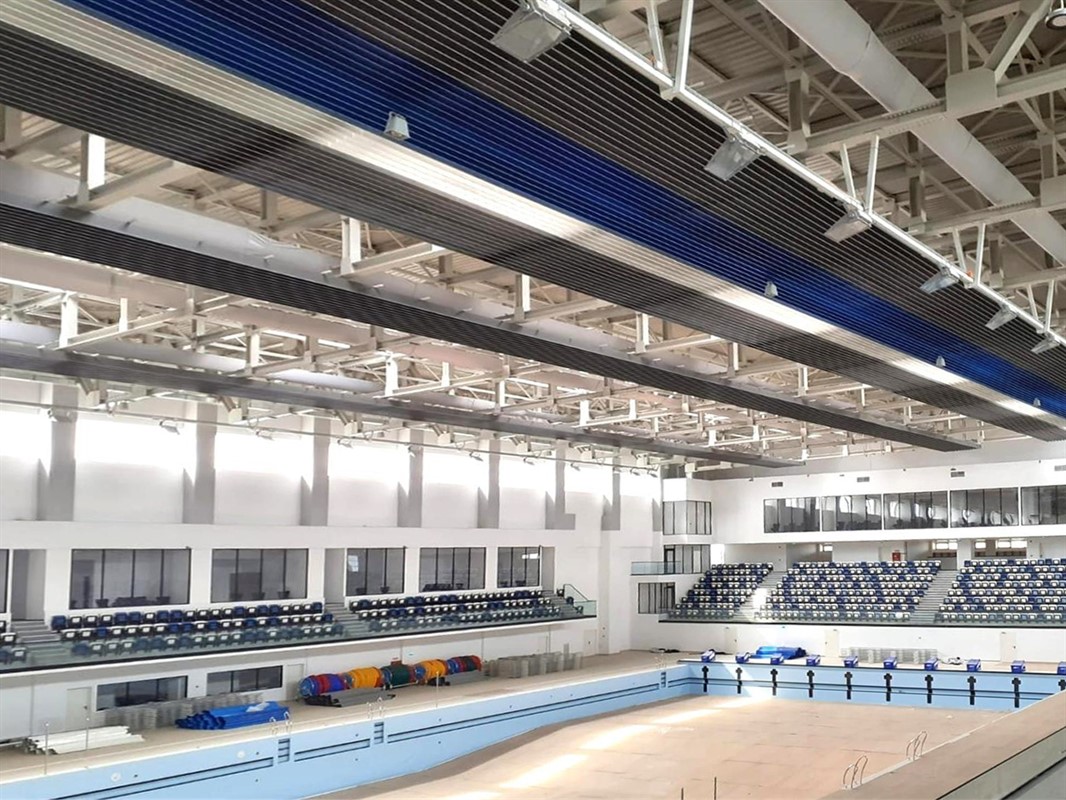

Baffle
dimensions 300 x 30 x 300 galvanized steel 0,7 mm
finishes powder coated Ral 9010 - 9007 - 5015 - 5017
with anticorrosion treatment C4 - H. 3000 mm.
+ Perforation AP1/0, hole diameter 1,5 mm - perforated area 22% diagonal pitch
(unperforated border 10 mm on all sides with base 30mm not perforated).
+ Acoustic pad inserted inside the baffles (glass-wool 30 kg/m3, 25 mm)
surface: 13.000 ml
